Model-601

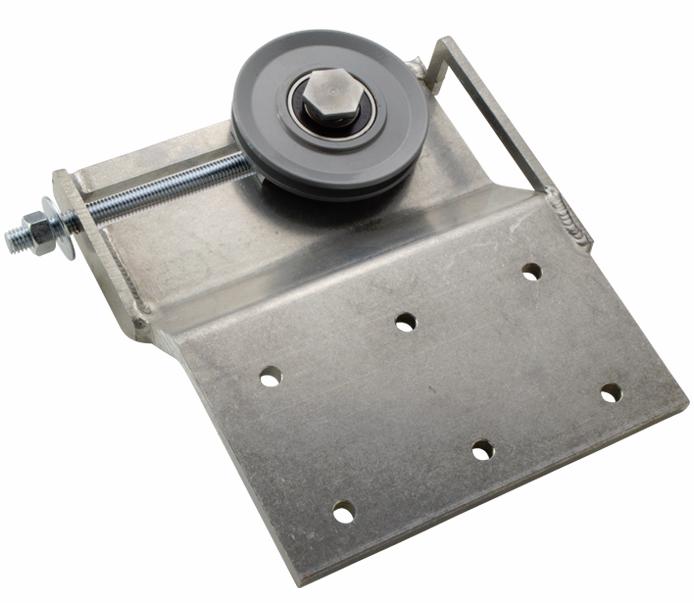

The rear idler's heavy-duty construction allows for greater durability. The cable tensioning bolt is positioned at the front, creating less interference when opening tailgate in a barn door application. The idlers are side-to-side adjustable allowing for easy alignment with front drive pulleys.

MODEL-602

> Trailer plug with 2 meters cable. > Control box (12 or 24 VDC). > Power inverter relay for motor switch. > Integrated control board for power and protection control. > Receiver for remote control integrated in control board. > “ON/OFF” indicator and emergency stop button. > Motor 24 VDC 400 W at 3.000 RPM IP 66. > Gearbox for Ø25 mm diameter axle and 1:50 reduction. > Connection plates of nylon and stainless steel bolts. > 4,5 meters cable (2x6mm) from control box to connection plates and motor. > Small material for all connections.

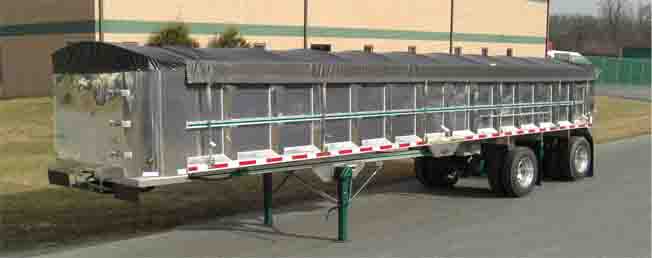

Cable Tarping Systems | Truck Tarp systems

   Cable tarp systems provide load containment options from anti-poll-ution mesh to semi-waterproof vinyl to over-the-side vinyl tarp systems. Several configuration options are available such as manual drive or electric tarp motors, flat or arch support bows, regular or extendedrear idlers/pulleys, metal or molded plastic bow ends and a variety of front shaft mounting arrangements.Applications from 10' to over 50' for any dump body. Custom sizes can be manufactured to meet unique applications such as oversized vehicles or special covering requirements. Cable tarp systems are a great option for a variety of applications, including; sand and gravel, asphalt, construction, sewage, refuse/garbage, grain and other agricultural products.

We have both tarp workshop and hardwere workshop .
